Stack flow supervision

Flow Measurement & Control

November 2008 Flow Measurement & Control

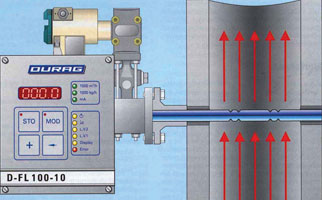

Durag’s D-FL-100 measuring system continuously determines the flow velocity and the flow rate of exhaust gases. Alarm levels are pre-selectable permitting necessary interventions in the plant control system in order to comply with prescribed limits on emission values.

Measuring lengths range from 400 mm to more than 4 m

Operating on the principle of differential pressure the probe separates two chambers; flow in the duct causes a build-up of pressure. The differential pressure induced across the probe is proportional to the square of the gas speed.

The units are available in two types:

* The D-FL-100-I is designed for flow measuring without temperature and pressure compensation.

* The D-FL-100-II is suitable for flow measuring with temperature and pressure compensation.

The volume flow can be converted from operational to standard conditions by the microprocessor evaluation unit. For this purpose, two additional current inputs (0-20 mA) for a temperature probe and a pressure probe have been provided at the evaluation unit. If an emission evaluation computer is available, the evaluation unit is not required.

Special designs are available for use in aggressive exhaust gases. A hastelloy flow probe is recommended for heating power plants, chemical plants and in paper manufacturing. For operating temperatures of over 600°C an inconel flow probe is available.

Exhaust gas temperature over the exhaust gas dew point is up to +320°C and a backflow purging feature is available as an option.

For more information contact Jan Pretorius, OEN Enterprises, +27 (0)11 675 4447, [email protected], www.oenenterprises.co.za
