Robust two-beam smoke density meter
August 2004
Analytical Instrumentation & Environmental Monitoring
Integrated Solutions

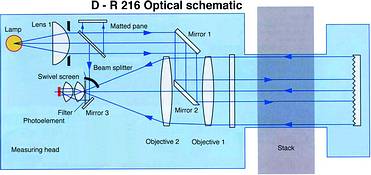

Durag's D-R216 smoke density meter applies the two-beam alternate light method following the auto-collimation principle, which allows the light beam to cross the measuring section twice. The unit measures and evaluates the weakening light beam caused by dust content within the measuring section.
Typical monitoring applications include for use in heating plants, industrial boiler plants, waste incinerators, dust extraction and filtering systems and emissions monitoring and control in the process industries. An electromagnetically actuated rotary diaphragm switches between the measuring beam and a comparator light beam. Comparative measurements of two seconds duration occur every 64 seconds for check value compensation.
A photocell receives the measuring and comparator light beam alternatively. As the emitter light is modulated with 25 Hz, no daylight influences will occur. A separate purge air fan keeps the heated optical boundary surfaces free from soiling.
Two models are available, one to measure opacity and the other dust concentration in mg/m3. The units are suitable for stack diameters ranging from 0,4 to 6,25 m, they have a 4 to 20 mA output signal and meet IP65 requirements.
For more information contact Noel Bauchop, OEN Enterprises, 011 675 4447, [email protected], www.oenenterprises.co.za
