Understanding the role of a continuity tester in electrical diagnostics is crucial for professionals and enthusiasts alike. This guide offers a step-by-step approach to using a digital multimeter as a continuity tester, ensuring precise and safe measurements. Whether testing switches and fuses or making general electrical connections, mastering a continuity tester is critical to effective electrical troubleshooting.
Setting up your digital multimeter

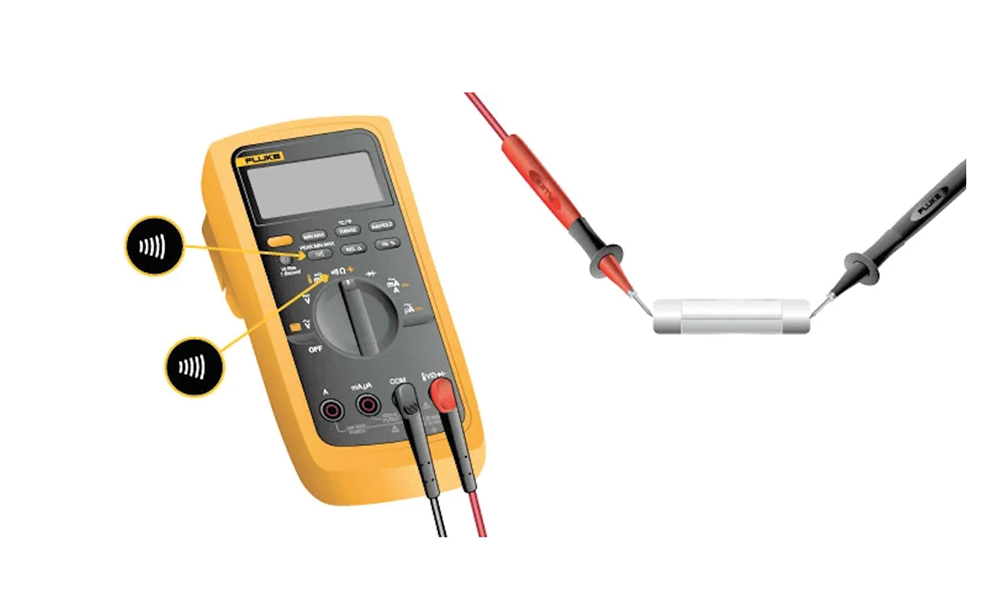

First, properly setting up your digital multimeter for the continuity test is essential. This involves:
• Selecting the correct mode: Turn the dial to Continuity Test mode. This mode is often combined with other functions, typically resistance (Ω). The multimeter’s display may show OL and Ω with the test probes separated.
• Activating continuity mode: Some models require pressing a continuity button to activate this specific testing mode. If your multimeter has this feature, ensure this step is followed.
Executing the continuity test
Once your digital multimeter is set up, follow these steps to conduct the continuity test:
• Connecting test leads: Insert the black test lead into the COM jack. Then insert the red lead into the VΩ jack. Always remove the leads in reverse order after testing: red first, then black.
• Testing the circuit: Connect the test leads across the tested component with the circuit de-energised. The position of the test leads is arbitrary, but ensure the component is isolated from other components in the circuit.
• Interpreting results: The digital multimeter (DMM) emits a beep if a complete path (continuity) is detected. If the circuit is open (the switch is in the OFF position), the DMM will not beep.
• Concluding the test: When finished, always turn the multimeter to OFF to conserve battery life.
Understanding continuity testing
Continuity is the presence of a complete path for the current flow. A circuit is considered complete when its switch is closed. Here are some key points to remember:
• Applications of continuity testing: A digital multimeter’s Continuity Test mode is versatile, and suitable for testing switches, fuses, electrical connections, conductors and other components. For example, a good fuse should show continuity.
• Audible indicator: The beep is an audible response from the DMM when it detects a complete path, allowing technicians to focus on the test without constantly monitoring the display.
• Understanding resistance and beeps: The beep is triggered based on the resistance of the tested component, influenced by the multimeter’s range setting. For instance, at a 400 Ω range setting, a multimeter typically beeps if the component has 40 Ω or less resistance.
• Optimal range setting: Use the lowest range setting to test components with low-resistance values, such as electrical connections or switch contacts.
